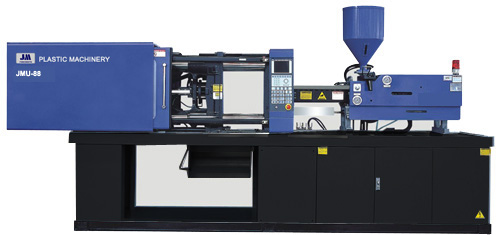

Machine Model：JMU-88 |
|
|
Item |
Name of item |
Unit |
JMU88 |
|
A |
B |
C |
|
Injection unit |
Screw Diameter |
mm |
34 |
36 |
40 |
|
Screw L/D Ratio |
L/D |
22.2 |
21 |
18.9 |
|
Shot size(Theoretical) |
cm3 |
168 |
188 |
232 |
|
lnjection weight |
g |
152 |
171 |
210 |
|
Injection Pressure |
Mpa |
205 |
183 |
148 |
|
Screw speed |
rpm |
0--220 |
|
Clamping unit |
Clamping tonnage |
Kn |
880 |
|
Toggle Stroke |
mm |
325 |
|
Space Between Tie-bars |
mm |
370X370 |
|
Max.Mould Thickness |
mm |
350 |
|
Min.Mould Thickness |
mm |
130 |
|
Ejector Stroke |
mm |
100 |
|
Ejector Tonnage |
Kn |
33 |
|
Ejector Number |
n |
5 |
|
Others |
Max.Pump Pressure |
mpa |
16 |
|
Pump Motor Power |
Kw |
11 |
|
Heater power |
Kw |
5.8 |
|
Machine Dimensions(L〜W〜H) |
m |
4.4〜1.25〜1.8 |
|
Machine Weight |
Ton |
3.5 |
|
Oil Tank Capacity |
Liter |
200 | |
|
|
|
