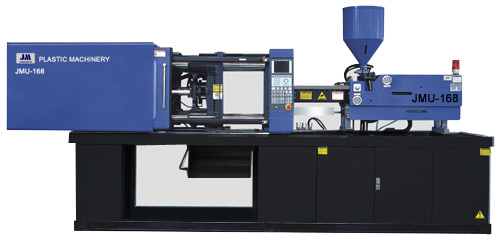

Machine Model：JMU-168 |
|
|
Item |
Name of item |
Unit |
JMU168 |
|
A |
B |
C |
|
Injection unit |
Screw Diameter |
mm |
42 |
45 |
48 |
|
Screw L/D Ratio |
L/D |
22.4 |
21 |
19.7 |
|
Shot size(Theoretical) |
cm3 |
343 |
395 |
448 |
|
lnjection weight |
g |
312 |
358 |
408 |
|
Injection Pressure |
Mpa |
182 |
159 |
140 |
|
Screw speed |
rpm |
0--190 |
|
Clamping unit |
Clamping tonnage |
Kn |
1680 |
|
Toggle Stroke |
mm |
420 |
|
Space Between Tie-bars |
mm |
460x460 |
|
Max.Mould Thickness |
mm |
500 |
|
Min.Mould Thickness |
mm |
180 |
|
Ejector Stroke |
mm |
120 |
|
Ejector Tonnage |
Kn |
39 |
|
Ejector Number |
n |
5 |
|
Others |
Max.Pump Pressure |
mpa |
16 |
|
Pump Motor Power |
Kw |
15 |
|
Heater power |
Kw |
9.3 |
|
Machine Dimensions(L〜W〜H) |
m |
4.9〜1.5〜1.9 |
|
Machine Weight |
Ton |
5.6 |
|
Oil Tank Capacity |
Liter |
300 | |
|
|
|
