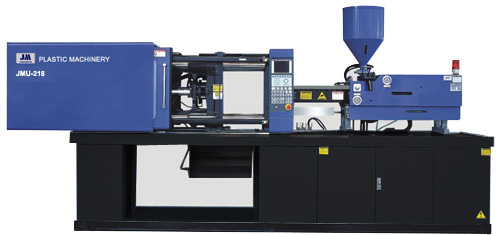

Machine Model：JMU-218 |
|
|
Item |
Name of item |
Unit |
JMU218 |
|
A |
B |
C |
|
Injection unit |
Screw Diameter |
mm |
45 |
50 |
55 |
|
Screw L/D Ratio |
L/D |
22.2 |
21 |
18.2 |
|
Shot size(Theoretical) |
cm3 |
397 |
490 |
593 |
|
lnjection weight |
g |
362 |
446 |
540 |
|
Injection Pressure |
Mpa |
220 |
179 |
148 |
|
Screw speed |
rpm |
0--190 |
|
Clamping unit |
Clamping tonnage |
Kn |
2180 |
|
Toggle Stroke |
mm |
470 |
|
Space Between Tie-bars |
mm |
510x510 |
|
Max.Mould Thickness |
mm |
540 |
|
Min.Mould Thickness |
mm |
200 |
|
Ejector Stroke |
mm |
140 |
|
Ejector Tonnage |
Kn |
62 |
|
Ejector Number |
n |
5 |
|
Others |
Max.Pump Pressure |
mpa |
16 |
|
Pump Motor Power |
Kw |
18.5 |
|
Heater power |
Kw |
12.45 |
|
Machine Dimensions(L〜W〜H) |
m |
5.6〜1.6〜2.1 |
|
Machine Weight |
Ton |
6.9 |
|
Oil Tank Capacity |
Liter |
350 | |
|
|
|
