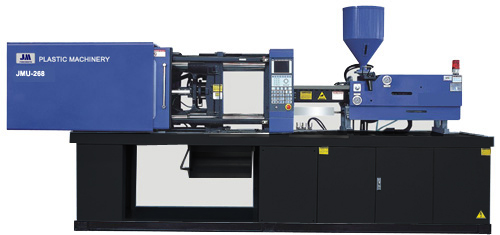

Machine Model：JMU-268 |
|
|
Item |
Name of item |
Unit |
JMU268 |
|
A |
B |
C |
|
Injection unit |
Screw Diameter |
mm |
50 |
55 |
60 |
|
Screw L/D Ratio |
L/D |
23.1 |
21 |
19.3 |
|
Shot size(Theoretical) |
cm3 |
570 |
690 |
820 |
|
lnjection weight |
g |
518 |
628 |
746 |
|
Injection Pressure |
Mpa |
204 |
169 |
142 |
|
Screw speed |
rpm |
0--180 |
|
Clamping unit |
Clamping tonnage |
Kn |
2680 |
|
Toggle Stroke |
mm |
525 |
|
Space Between Tie-bars |
mm |
570x570 |
|
Max.Mould Thickness |
mm |
580 |
|
Min.Mould Thickness |
mm |
220 |
|
Ejector Stroke |
mm |
140 |
|
Ejector Tonnage |
Kn |
62 |
|
Ejector Number |
n |
9 |
|
Others |
Max.Pump Pressure |
mpa |
16 |
|
Pump Motor Power |
Kw |
22 |
|
Heater power |
Kw |
14.85 |
|
Machine Dimensions(L〜W〜H) |
m |
5.8〜1.7〜2.3 |
|
Machine Weight |
Ton |
8 |
|
Oil Tank Capacity |
Liter |
500 | |
|
|
|
