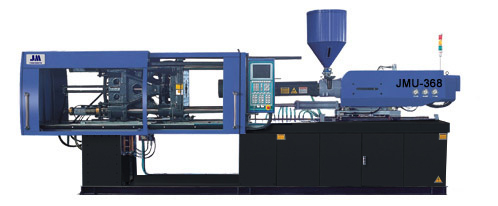

Machine Model：JMU-368 |
|
|
Item |
Name of item |
Unit |
JMU368 |
|
A |
B |
C |
|
Injection unit |
Screw Diameter |
mm |
65 |
70 |
75 |
|
Screw L/D Ratio |
L/D |
23.7 |
22 |
20.5 |
|
Shot size(Theoretical) |
cm3 |
1250 |
1435 |
1930 |
|
lnjection weight |
g |
1137 |
1305 |
1756 |
|
Injection Pressure |
Mpa |
210 |
181 |
158 |
|
Screw speed |
rpm |
0--150 |
|
Clamping unit |
Clamping tonnage |
Kn |
3680 |
|
Toggle Stroke |
mm |
670 |
|
Space Between Tie-bars |
mm |
710X710 |
|
Max.Mould Thickness |
mm |
720 |
|
Min.Mould Thickness |
mm |
270 |
|
Ejector Stroke |
mm |
180 |
|
Ejector Tonnage |
Kn |
126 |
|
Ejector Number |
n |
13 |
|
Others |
Max.Pump Pressure |
mpa |
16 |
|
Pump Motor Power |
Kw |
37 |
|
Heater power |
Kw |
23 |
|
Machine Dimensions(L〜W〜H) |
m |
7.6〜2.1〜2.5 |
|
Machine Weight |
Ton |
15 |
|
Oil Tank Capacity |
Liter |
900 | |
|
|
|
