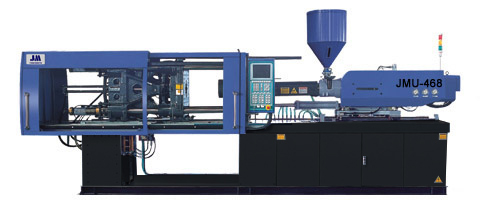

Machine Model：JMU-468 |
|
|
Item |
Name of item |
Unit |
JMU468 |
|
A |
B |
C |
|
Injection unit |
Screw Diameter |
mm |
75 |
80 |
84 |
|
Screw L/D Ratio |
L/D |
21.4 |
20 |
19 |
|
Shot size(Theoretical) |
cm3 |
1722 |
1959 |
2160 |
|
lnjection weight |
g |
1567 |
1786 |
1966 |
|
Injection Pressure |
Mpa |
177 |
156 |
141 |
|
Screw speed |
rpm |
0--160 |
|
Clamping unit |
Clamping tonnage |
Kn |
4680 |
|
Toggle Stroke |
mm |
750 |
|
Space Between Tie-bars |
mm |
800X762 |
|
Max.Mould Thickness |
mm |
820 |
|
Min.Mould Thickness |
mm |
300 |
|
Ejector Stroke |
mm |
200 |
|
Ejector Tonnage |
Kn |
120 |
|
Ejector Number |
n |
13 |
|
Others |
Max.Pump Pressure |
mpa |
16 |
|
Pump Motor Power |
Kw |
45 |
|
Heater power |
Kw |
23.65 |
|
Machine Dimensions(L〜W〜H) |
m |
8.00〜1.92〜2.71 |
|
Machine Weight |
Ton |
20 |
|
Oil Tank Capacity |
Liter |
700 | |
|
|
|
