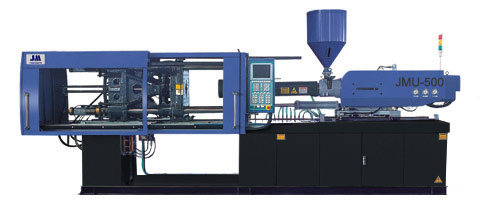

Machine Model：JMU-500 |
|
|
Item |
Name of item |
Unit |
JMU500 |
|
A |
B |
C |
|
Injection unit |
Screw Diameter |
mm |
75 |
84 |
90 |
|
Screw L/D Ratio |
L/D |
23.5 |
21 |
19.6 |
|
Shot size(Theoretical) |
cm3 |
1930 |
2420 |
2780 |
|
lnjection weight |
g |
1756 |
2200 |
2525 |
|
Injection Pressure |
Mpa |
179 |
142 |
124 |
|
Screw speed |
rpm |
0--145 |
|
Clamping unit |
Clamping tonnage |
Kn |
5000 |
|
Toggle Stroke |
mm |
730 |
|
Space Between Tie-bars |
mm |
800X800 |
|
Max.Mould Thickness |
mm |
800 |
|
Min.Mould Thickness |
mm |
350 |
|
Ejector Stroke |
mm |
200 |
|
Ejector Tonnage |
Kn |
150 |
|
Ejector Number |
n |
13 |
|
Others |
Max.Pump Pressure |
mpa |
16 |
|
Pump Motor Power |
Kw |
45 |
|
Heater power |
Kw |
25.9 |
|
Machine Dimensions(L〜W〜H) |
m |
8.0〜2.3〜3.0 |
|
Machine Weight |
Ton |
23 |
|
Oil Tank Capacity |
Liter |
1050 | |
|
|
|
