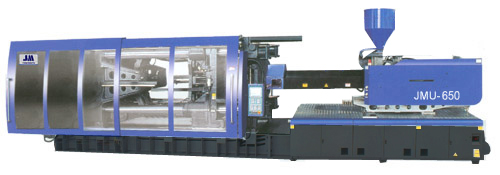

Machine Model：JMU-650 |
|
|
Item |
Name of item |
Unit |
JMU650 |
|
A |
B |
C |
D |
|
Injection unit |
Screw Diameter |
mm |
80 |
90 |
100 |
110 |
|
Screw L/D Ratio |
L/D |
24.8 |
22 |
19.8 |
18 |
|
Shot size(Theoretical) |
cm3 |
2112 |
2673 |
3300 |
3993 |
|
Injection Weight |
g |
1920 |
2430 |
3003 |
3631 |
|
Injection Pressure |
Mpa |
224 |
177 |
142 |
117 |
|
Screw speed |
rpm |
0--130 |
|
Clamping unit |
Clamping tonnage |
Kn |
6500 |
|
Toggle Stroke |
mm |
900 |
|
Space Between Tie-bars |
mm |
900〜900 |
|
Max.Mould Thickness |
mm |
900 |
|
Min.Mould Thickness |
mm |
400 |
|
Ejector Stroke |
mm |
260 |
|
Ejector Tonnage |
Kn |
175 |
|
Ejector Number |
n |
17 |
|
Others |
Max.Pump Pressure |
mpa |
16 |
|
Pump Motor Power |
Kw |
30+30 |
|
Heater power |
Kw |
46 |
|
Machine Dimensions(L〜W〜H) |
m |
10〜2.5〜3.8 |
|
Machine Weight |
Ton |
36 |
|
Oil Tank Capacity |
Liter |
1480 | |
|
|
|
