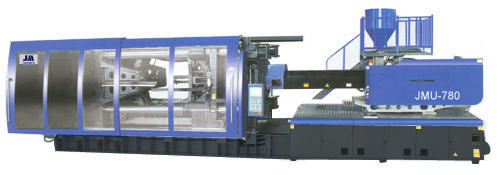

Machine Model：JMU-780 |
|
|
Item |
Name of item |
Unit |
JMU780 |
|
A |
B |
C |
D |
|
Injection unit |
Screw Diameter |
mm |
90 |
100 |
110 |
120 |
|
Screw L/D Ratio |
L/D |
24.4 |
22 |
20 |
18.3 |
|
Shot size(Theoretical) |
cm3 |
2945 |
3636 |
4400 |
5236 |
|
Injection Weight |
g |
2680 |
3606 |
4003 |
4765 |
|
Injection Pressure |
Mpa |
228 |
184 |
152 |
128 |
|
Screw speed |
rpm |
0--110 |
|
Clamping unit |
Clamping tonnage |
Kn |
7800 |
|
Toggle Stroke |
mm |
980 |
|
Space Between Tie-bars |
mm |
980〜980 |
|
Max.Mould Thickness |
mm |
1000 |
|
Min.Mould Thickness |
mm |
400 |
|
Ejector Stroke |
mm |
260 |
|
Ejector Tonnage |
Kn |
186 |
|
Ejector Number |
n |
21 |
|
Others |
Max.Pump Pressure |
mpa |
16 |
|
Pump Motor Power |
Kw |
37+37 |
|
Heater power |
Kw |
58 |
|
Machine Dimensions(L〜W〜H) |
m |
11〜2.6〜3.8 |
|
Machine Weight |
Ton |
46 |
|
Oil Tank Capacity |
Liter |
1770 | |
|
|
|
