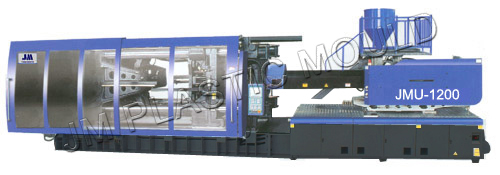

Machine Model：JMU-1200 |
|
|
Item |
Name of item |
Unit |
JMU1200 |
|
A |
B |
C |
D |
|
Injection unit |
Screw Diameter |
mm |
110 |
120 |
130 |
140 |
|
Screw L/D Ratio |
L/D |
26.2 |
24 |
22.2 |
20.6 |
|
Shot size(Theoretical) |
cm3 |
5545 |
6600 |
7745 |
8980 |
|
Injection Weight |
g |
5045 |
6005 |
7045 |
8170 |
|
Injection Pressure |
Mpa |
208 |
175 |
150 |
128 |
|
Screw speed |
rpm |
0--90 |
|
Clamping unit |
Clamping tonnage |
Kn |
12000 |
|
Toggle Stroke |
mm |
1250 |
|

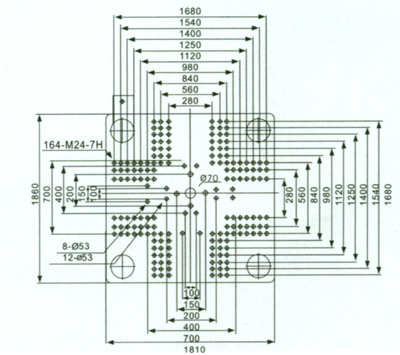

Space Between Tie-bars |
mm |
1250〜1250 |
|
Max.Mould Thickness |
mm |
1300 |
|
Min.Mould Thickness |
mm |
550 |
|
Ejector Stroke |
mm |
320 |
|
Ejector Tonnage |
Kn |
235 |
|
Ejector Number |
n |
21 |
|
Others |
Max.Pump Pressure |
mpa |
16 |
|
Pump Motor Power |
Kw |
55+55 |
|
Heater power |
Kw |
85 |
|
Machine Dimensions(L〜W〜H) |
m |
13.7〜3.14〜4.1 |
|
Machine Weight |
Ton |
66 |
|
Oil Tank Capacity |
Liter |
2400 | |
|
|
|
