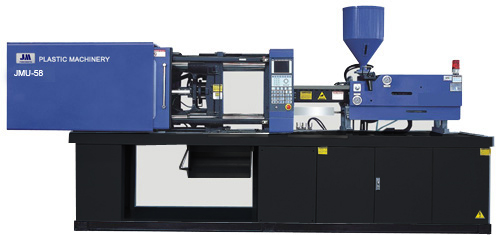

Machine Model：JMU-58 |
|
|
Item |
Name of item |
Unit |
JMU58 |
|
A |
B |
C |
|
Injection unit |
Screw Diameter |
mm |
26 |
30 |
34 |
|
Screw L/D Ratio |
L/D |
25 |
22 |
19.4 |
|
Shot size(Theoretical) |
cm3 |
69 |
92 |
118 |
|
lnjection weight |
g |
63 |
84 |
107 |
|
Injection Pressure |
Mpa |
245 |
185 |
144 |
|
Screw speed |
rpm |
255 |
|
Clamping unit |
Clamping tonnage |
Kn |
580 |
|
Toggle Stroke |
mm |
275 |
|
Space Between Tie-bars |
mm |
315X315 |
|
Max.Mould Thickness |
mm |
320 |
|
Min.Mould Thickness |
mm |
120 |
|
Ejector Stroke |
mm |
75 |
|
Ejector Tonnage |
Kn |
22 |
|
Ejector Number |
n |
1 |
|
Others |
Max.Pump Pressure |
mpa |
16 |
|
Pump Motor Power |
Kw |
7.5 |
|
Heater power |
Kw |
5.2 |
|
Machine Dimensions(L〜W〜H) |
m |
3.9〜1.1〜1.6 |
|
Machine Weight |
Ton |
2.54 |
|
Oil Tank Capacity |
Liter |
120 | |
|
|
|
