Item

Name of item

Unit

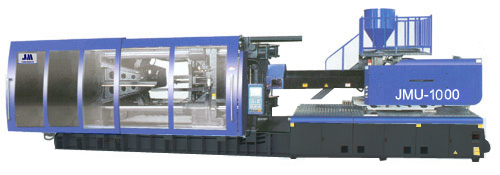

JMU1000

A

B

C

D

Injection unit

Screw Diameter

mm

100

110

120

130

Screw L/D Ratio

L/D

24.2

22

20

18.6

Shot size(Theoretical)

cm³

3818

4619

5500

6452

Injection Weight

g

3475

4203

5005

5871

Injection Pressure

Mpa

185

170

155

143

Screw speed

rpm

0--100

Clamping unit

Clamping tonnage

Kn

10000

Toggle Stroke

mm

1100

Space Between Tie-bars

mm

1100×1100

Max.Mould Thickness

mm

1150

Min.Mould Thickness

mm

500

Ejector Stroke

mm

280

Ejector Tonnage

Kn

215

Ejector Number

n

21

Others

Max.Pump Pressure

mpa

16

Pump Motor Power

Kw

45+45

Heater power

Kw

68

Machine Dimensions(L×W×H)

m

12×2.8×4.0

Machine Weight

Ton

58

Oil Tank Capacity

Liter

2300
